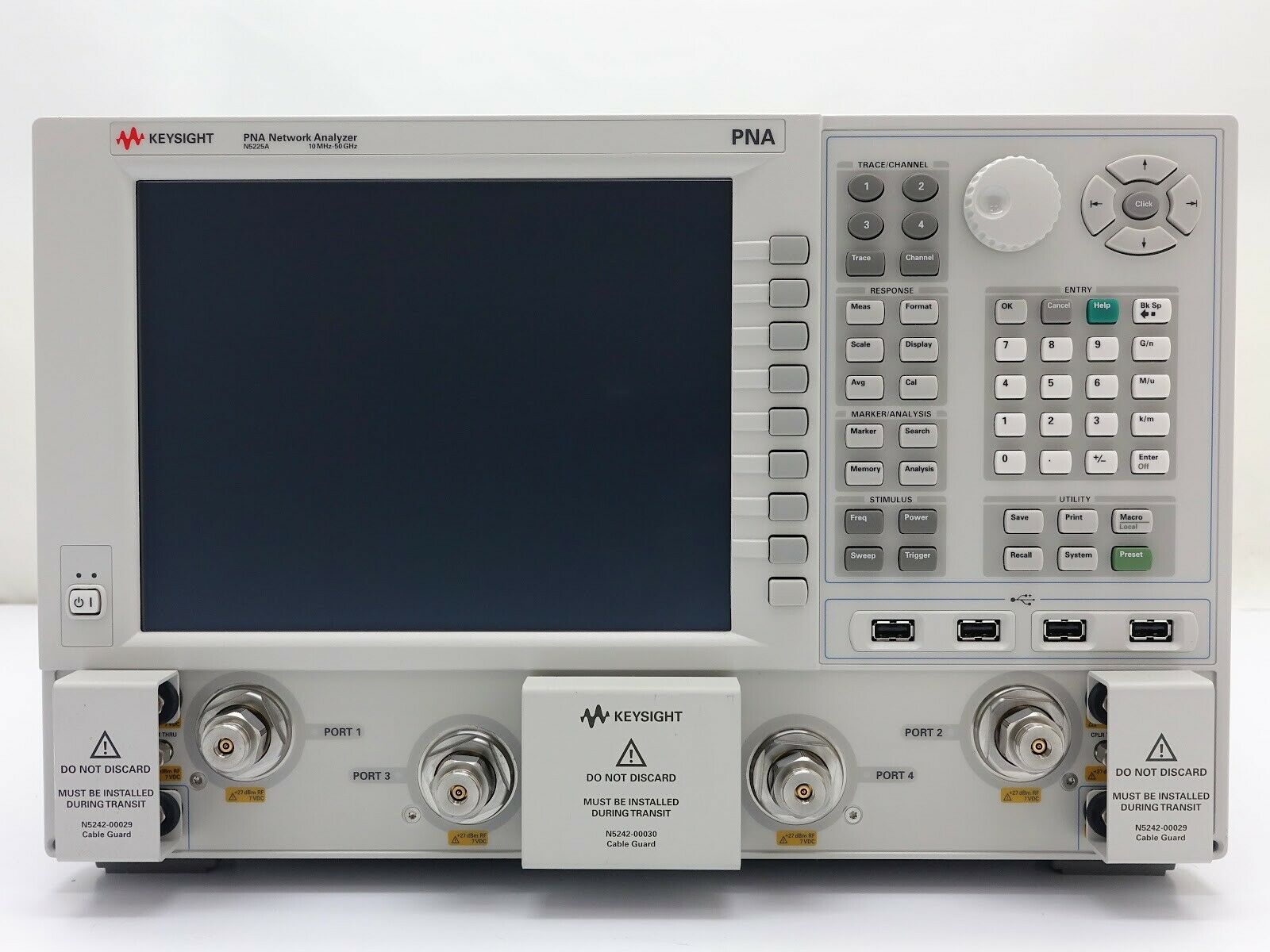

Keysight 2-Port and 4-Port PNA Network Analyzer

N5225A 10 MHz to 50 GHz

選件和進級

選件

不找此生成物的選件企業信息。學透基本的信息:

資本中間

檢驗全數文件:

關頭產物信息

撿查此化合物的關鍵效率。

手藝目標

手冊

手冊和合作力概覽

挑選與設置裝備擺設指南

演示

撐持文檔

交流切磋此有機物若何對答對應的精確測量挑釁。

是德科技矢量收集闡發的根基道理

本利用指南先容了收集闡發儀已成為高頻元器件和裝備停止機能表征的主要東西之一。

Only perfect test equipment would not need correction. Imperfections exist in even the finest test equipment and cause less than ideal measurement results.

是德科技收集闡發儀丈量：濾波器和縮小器示例

Tuning multi-stage, coupled-resonator band-pass filters is difficult due to interactions between resonator and coupling tuning. To achieve the proper pass-band response and to get low return loss you must precisely tune the frequency of each resonator and precisely set each coupling between the...

This paper discusses calibration standard definitions, calibration kit content, and its structure requirements for Keysight's vector network analyzers. Also provided are set up examples and how to modify an existing calibration kit definition file.

領會和改良收集闡發儀的靜態規模

At RF and microwave frequencies, it becomes difficult to directly measure devices with nonstandard connectors (for example, devices using surface-mount packaging).

This paper compares techniques and instruments for measuring conversion loss and group delay on a single stage converter with an embedded low pass filter. Conversion loss using a: spectrum, scalar, and vector network analyzer.

是德科技利用 PNA 微波收集闡發儀中的頻次轉換器利用軟件改良丈量和校準精度

PNA微波收集闡發儀利用指南1408-10

This application note describes accuracy considerations when using the Keysight PNA-X microwave network analyzer for two-tone intermodulation distortion measurements.

This application note discusses the unique challenges involved in testing high-power devices using Keysight's N5242A nonlinear vector network analyzer(NVNA).

是德科技利用 PNA-X 系列收集闡發儀切確地丈量噪聲系數

This AN discusses pulsed S-parameter measurements using the PNA-X series and measurement techniques that enable power-dependent active device characterization including compression and distortion.

是德科技資料介電特征的丈量根本

This application note, Using Modern VNAs to Automate Traditional Multi-instrument RF Test Systems, shows how test system designers can design simpler test systems with the lowest overall cost of ownership.

This documentation is intended for on-wafer applications using the 4-port, 20 GHz, PNA-L network analyzer with two dual probes to achieve full 4-port on-wafer calibrations manually. This application note provides the step-by-step instructions needed to set up a calibration kit in order to perform a 4-port SOLT (Short-Open-Load-Thru) calibration using only three thrus.

The purpose of this paper is to clarify the differences between electronic and mechanical calibrations and how these differences affect measurement accuracy.

是德科技利用收集闡發儀停止時域闡發

利用指南:高達 67 GHz 的晶圓噪聲系數丈量優化

U3021PXx Interface kit for test set with jumper connectors to align with N524xA PNA-X and N522xA PNA

U3021PNx Interface kit for test set with jumper connectors to align with E836xB/C PNA and N5230A/C-x25 2-port PNA-L

Option 261 For use with E8361A/C 2-port PNA

Option 262 For use with E8362B/C 2-port PNA or N5230A/C-225 2-port PNA-L

Option 263 For use with E8363B/3C/4B/4C 2-port PNA or N5230A/C-425/525 2-port PNA-L

Option 430 For use with N5230A/C-245/246 4-port PNA-L

Option 242 For use with N5241/42/49A-2xx 2-port PNA-X or N5221A/2A-2xx 2-port PNA

Option 442 For use with N5241/42/49A-400 4-port PNA-X or N5221A/2A-4xx 4-port PNA

Option 245 For use with N5244A/5A-200 2-port PNA-X or N5224A/5A-2xx 2-port PNA

Option 445 For use with N5244A/5A-400 4-port PNA-X or N5224A/5A-4xx 4-port PNA

Option 247 For use with N5247A-200 2-port PNA-X or N5227A-2xx 2-port PNA

Option 447 For use with N5247A-400 4-port PNA-X or N5227A-4xx 4-port PNA

最大頻次	50 GHz
靜態規模	127 dB
輸入功率	13 dBm
內置端口數目	2 或 4 端口
諧波	-60 dBc
掃描速率最高可達 201 個點	5.5 ms
收集闡發儀系列	PNA 高機能
元器件	天線混頻器/變頻器縮小器

OPTIONS:

2 ports, single source, base configuration (Option
200)

2-ports, single source, base configuration (Option
200/210)

2 ports, single source, with configurable test set
and source attenuators (Option 216)

2-ports, single source, with extended power range
(Option 217)

2-ports, single source, with extended power range
and bias-tee (Option 219)

4-ports, dual source, base configuration
(Option 400/410)

4-ports, dual source, with configurable test set
(Option 401)

4-ports, dual source, with extended power range
(Option 417)

4-ports dual source, with extended power range
and bias-tee (Option 419)

4 ports, single source, base configuration (Option
400)

4 ports, single source, with configurable test set
and source attenuator (Option 416)

Automatic fixture removal (Option 007) Time domain (Option 010) Frequency offset (Option 080)

Scalar-calibrated converter measurements
(Option 082)

Vector- and scalar-calibrated converter
measurements (Option 083)

Embedded LO measurements (Option 084) Gain compression application (Option 086)

Intermodulation distortion application
(Option 087)

Source phase control (Option 088) Differential and I/Q devices application (Option 089) Spectrum analyzer (Option 090)

Extended spectrum analyzer to 110 GHz
(Option 093)

Extended spectrum analyzer above 110 GHz
(Option 094)

Active Hot Parameters (Option 110/111)

Integrated true-mode stimulus application
(Option 460)

N-port capabilities (Option 551)

Noise figure measurements using standard receivers
(Option 028)

Fully-corrected noise figure measurements
(Option 029)

Pulsed-RF measurements (Option 008)

Add IF inputs for antenna and millimeterwave
(Option 020)

Add pulse modulator to internal first source
(Option 021)

Add pulse modulator to internal second source
(Option 022)

Add four internal pulse generators (Option 025) Fast CW Sweep (Option 118) Rack mount kit without handles (Option 1CM) Rack mount kit with handles (Option 1CP) Pulse I/O adapter (N1966A)
